ABB Emax series air circuit breakers, low-voltage terminal power distribution products

ABB Emax series air circuit breakers, low-voltage terminal power distribution products

As the flagship product in ABB’s low-voltage power distribution portfolio, the Emax series of air circuit breakers has undergone continuous evolution. Thanks to comprehensive, reliable electrical performance, an ultra-compact design, and ongoing advancements—ranging from traditional distribution protection to intelligent energy management—the series delivers core solutions that combine high safety with exceptional efficiency across a wide spectrum of sectors, including industrial manufacturing, critical infrastructure, and renewable energy.
Consulta on-line Contato Nós

Product Details

📊 Overview of Key Parameter Comparisons:

Comparison Dimensions Emax (Classic Series)
Product Model X1, E1, E2, E3, E4, E6
Frame current (Iu) Maximum 6300A (E6)
Rated voltage (Ui) Maximum 1000V
Division ability (ICU) Up to 150kA (E6 V class)
Short-term tolerance (Icw) Maximum 100kA/1s (E6)
Trip unit type PR111/P, PR112/P, PR113/P, PR121/P, PR122/P, PR123/P
Protection function LI, LSI, LSIG, etc.
Smart functions Weak , basically lacking these functions
External dimensions Relatively large:
E1 (approximately 300mm wide)
E4 (approximately 576mm wide)
Explanation of "Breaking Capacity Class": ABB uses letters to represent different breaking capacity classes, such as B (42kA), N (66kA), S (85kA), H (100kA), V (150kA), etc. For example, E2.2N represents a circuit breaker with an E2.2 frame and a breaking capacity of 66kA (N class).



Emax Classic Series
Model Rated current range (Iu) Disruption capacity Icu (440V, kA)
E1 400 ~ 1600A ≤85
E2 800 ~ 2000A ≤100
E3 1250 ~ 3200A ≤150
E4 3200 ~ 4000A ≤150
E6 3200 ~ 6300A ≤150



Model
E1B800 E1N800 E1S800 E3H1250 E4V3200
E1B1000 E1N1000 E1S1000 E3H1600 E4V4000
E1B1250 E1N1250 E1S1250 E3H2000 E6V4000
E1B1600 E1N1600 E2S1250 E3H2500 E6V5000
E2B1600 E2N1250 E2S1600 E3H3200 E6V6300
E2B2000 E2N1600 E2S2000 E4H3200
  E2N2000 E3S1250 E4H4000
  E3N2500 E3S1600 E6H4000
  E3N3200 E3S2000 E6H5000
    E3S2500 E6H6300
    E3S3200
    E4S4000



Protection unit
PR121/P-LI PR122/P-LI PR123/P-LSI
PR121/P-LSI PR122/P-LSI PR123/P-LSIG
PR121/P-LSIG PR122/P-LSIG

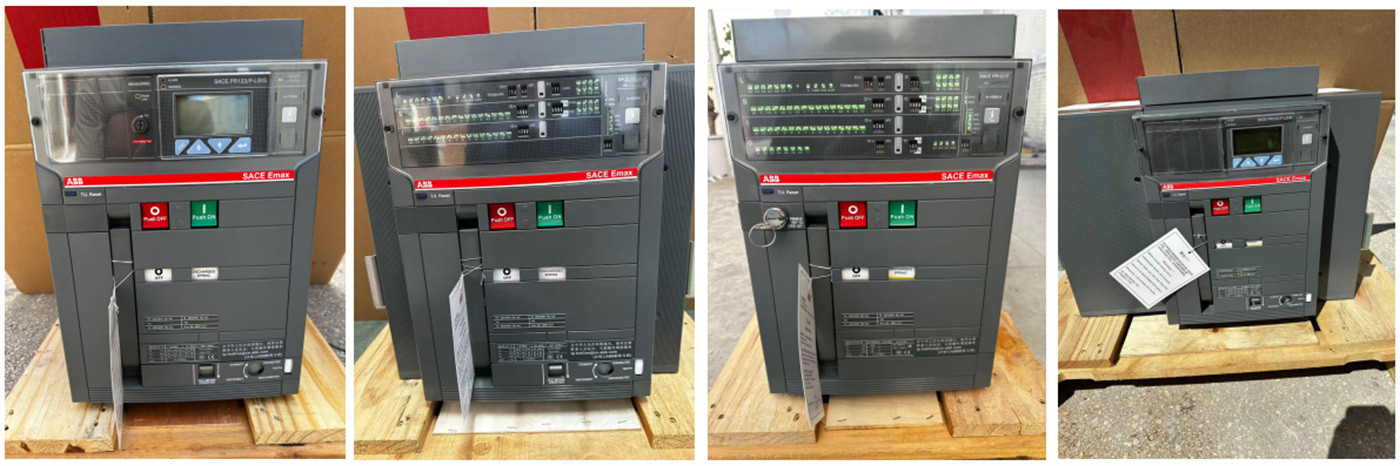

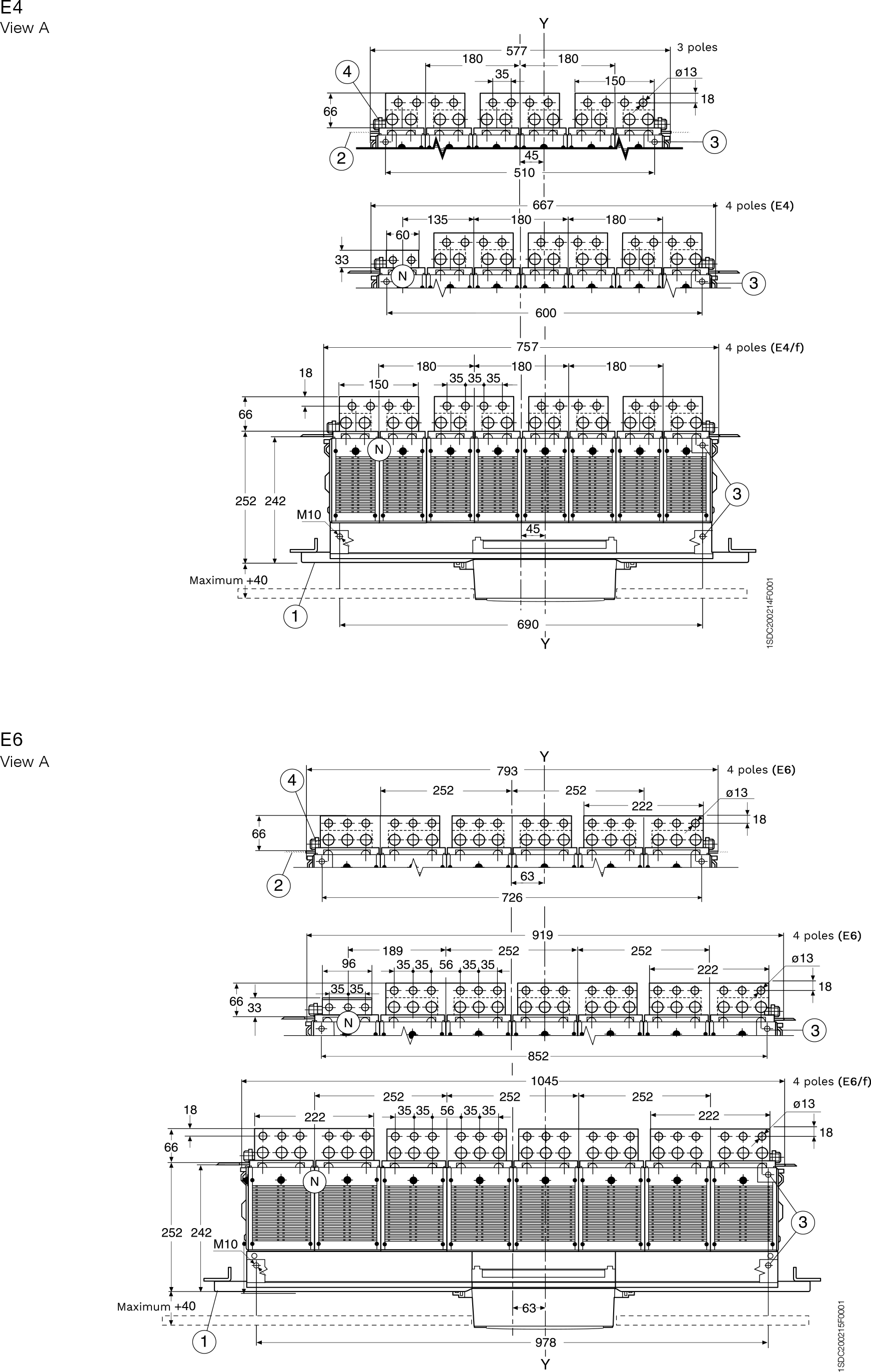

Dimensions - E1-E6
Fixed Circuit Breaker

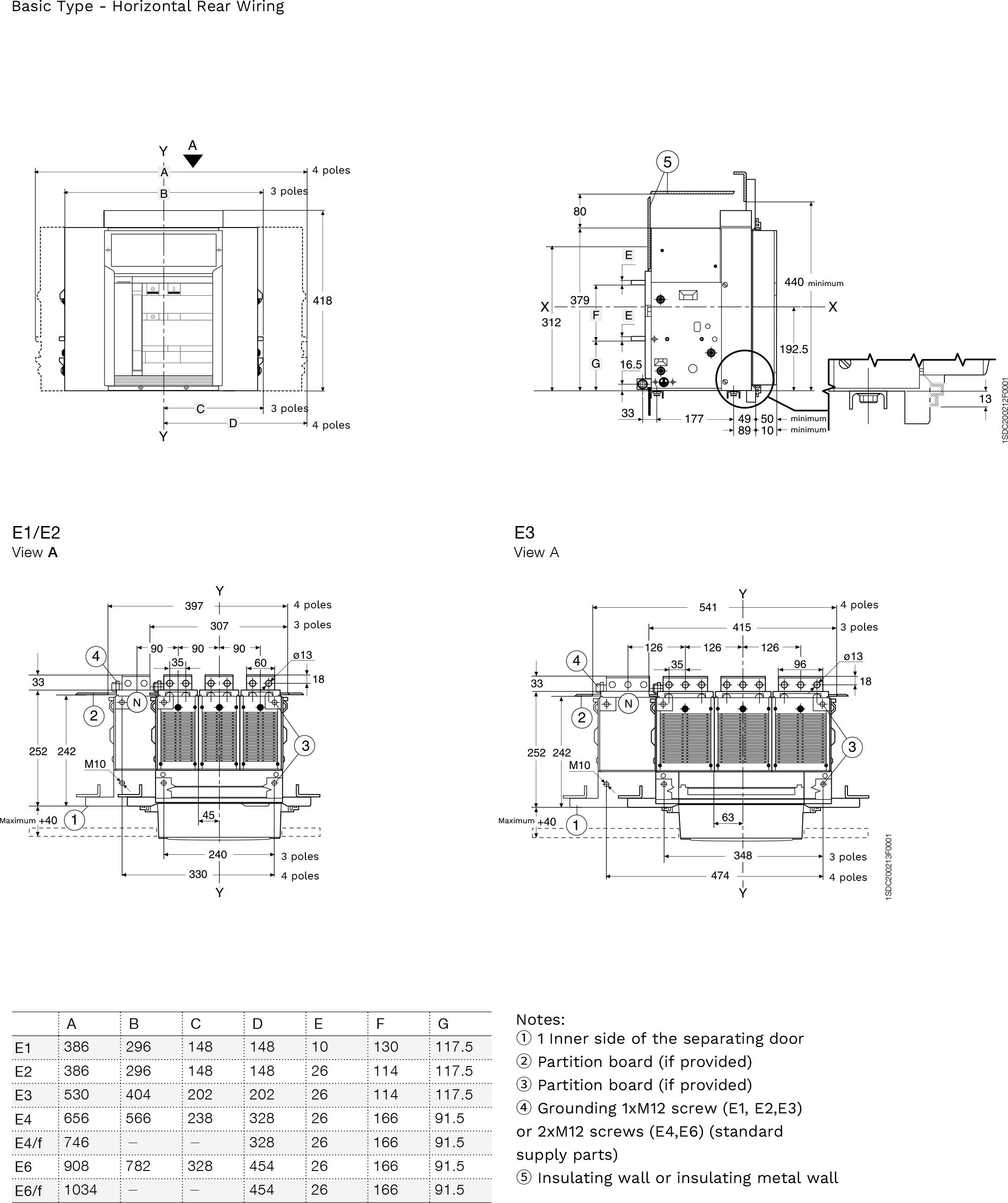

Dimensions - E1-E6


Dimensions - E1-E6

Fixed Circuit Breaker

Dimensions - E1-E6



Applicable Scenarios:

Oil Gas/Mining Manufacturing/HeavyIndustry Infrastructure/Transportation Power/New Energy
Oil Gas/Mining Manufacturing/HeavyIndustry Infrastructure/Transportation Power/New Energy



Consulta on-line

Submeter

Produtos relacionados

Emax 2 Series Air Circuit Breaker

Emax 2 Series Air Circuit Breaker

The Emax 2 series air circuit breakers cover the full spectrum of power distribution needs with a frame rating of up to 6300A, evolving from traditional protective devices into comprehensive energy management platforms that integrate protection, measurement, control, and communication. Their unique energy control capabilities enable active load management and peak-shaving/valley-filling, significantly reducing electricity costs, while a compact design saves up to 20% of switchgear space. Equipped with Ekip Touch smart touch-screen trip units and supporting a wide range of industrial communication protocols, they enable full-lifecycle digital management—from local operations and maintenance to cloud connectivity.

ABB F-Series (Megamax) Air Circuit Breaker

ABB F-Series (Megamax) Air Circuit Breaker

The ABB F-series (Megamax) air circuit breaker is a proven and reliable choice for low-voltage power distribution. Featuring a modular design, a wide current range (630A to 6300A), and various breaking capacity ratings, it flexibly meets the protection requirements of diverse power supply systems. Equipped with intelligent electronic trip units (such as the PR1/P and AR1 series) that support long-time, short-time, instantaneous, and ground-fault protection—and available in both fixed and draw-out versions—it ensures the safety and continuous operation of power systems in applications ranging from industrial distribution and building electrical systems to energy management.

ABB Emax series air circuit breakers, low-voltage terminal power distribution products

ABB Emax series air circuit breakers, low-voltage terminal power distribution products

As the flagship product in ABB’s low-voltage power distribution portfolio, the Emax series of air circuit breakers has undergone continuous evolution. Thanks to comprehensive, reliable electrical performance, an ultra-compact design, and ongoing advancements—ranging from traditional distribution protection to intelligent energy management—the series delivers core solutions that combine high safety with exceptional efficiency across a wide spectrum of sectors, including industrial manufacturing, critical infrastructure, and renewable energy.
